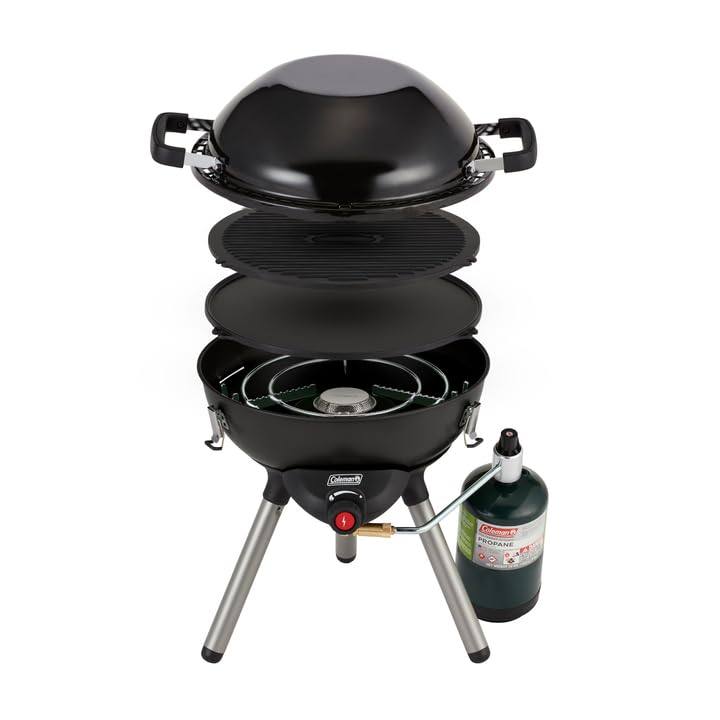

Coleman files model 2209292 under camping stoves rather than grills. The box holds a wok, a pan support and one reversible plate. Ribbed on one face, flat on the other. That is stove, wok, grill and griddle out of three parts.
Convertible gear charges for the conversion somewhere. Usually it charges in bulk. Not here. The whole kit nests inside the inverted wok and latches shut for the drive.
So where does this one take payment? It sells for around $122, and the answer is not in the price. Coleman gives it in the manual instead of on the box.
7,000 BTUOne burner, under whichever surface is fitted
100 sq inCooking area, identical in all four modes
3 insertsWhat Coleman turns into four cooking modes
3 hoursBurn time on one cylinder at full flame
First Impressions of the Coleman 4-in-1 Cooking System
Assembly is three legs and two handles. The legs screw into sockets underneath, hand tight. The handles bolt to the wok using a screw, spacer, washer and dome nut. Coleman supplies the hardware but not the screwdriver.

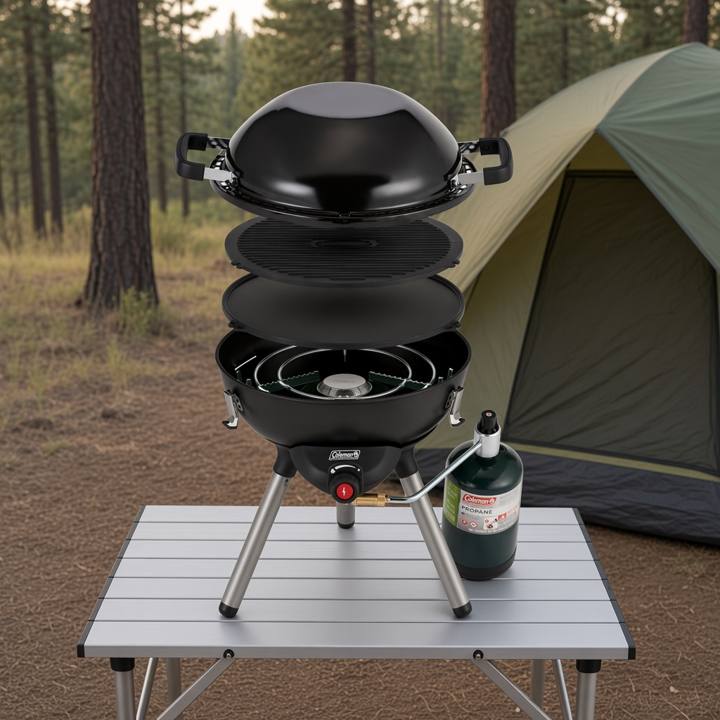

Standing up, it reads as a small black kettle on a tripod. The cylinder hangs off a brass elbow at one side. One knob and one red button sit together on the same pod.
Two things are not in the box. The cylinder is sold separately. Coleman’s manual mentions a custom carry bag, then notes the same.
The first cook went on the ribbed face. Before any of that, the water pan gets filled to its marked line. Coleman requires this in all four modes, not only when fat is involved. Then two minutes at full flame to bring the plate up.
Sausages took colour in the middle well before the rim. That is not a fault anyone found. It is Coleman’s own description of the heat, printed in the manual. Maximum in the centre, gentler towards the edge.
Key Features of the Coleman 4-in-1 Cooking System
The four modes are the headline. The features worth knowing are the rules attached to them. Most of those live in the manual, not the listing.
- Three inserts, four modes. A wok, a chrome-plated pan support, and one reversible plate. Ribbed side up it grills, flat side up it griddles. Four surfaces, three things to lose.
- A water pan you fill before every light. Coleman wants it at its MAX WATER line whatever you are cooking. Fat off the plate collects there. Water becomes a consumable.
- Instastart push-button igniter. One push lights the ring without a match. A slot in the pan front lets you read the flame under a fitted surface.
- A wok that travels as the lid. Inverted over the stack and latched, it is the carrying case. Using it as a lid while cooking is banned. The manual says that voids the warranty.
- Legs that unscrew. Three of them come out and drop into the water pan for the journey. The bundle weighs 11.25 lbs complete.
- One burner, one knob. 7,000 BTU under whatever is fitted above it. Coleman’s spec block prints Stove Wind Block: No against this model.
- Dishwasher-safe cooking parts. Wok, reversible plate, pan support and water pan all go in. Camp cookware rarely offers that.
- Spares Coleman actually lists. An accessory pack, the 5430 regulator, and legs sold in threes. A ruined coating does not retire the base.
One ring of 7,000 BTU has to serve four fairly different jobs. A wok wants its heat gathered into a point. A griddle wants it spread flat. This appliance cannot do both, and Coleman does not claim it does.
What you get everywhere is the wok’s pattern. The manual states it without embarrassment: maximum in the centre, less intense towards the edge. On the flat face that works. Nudge what is done out to the rim and keep going.
One more thing sits under every surface. The water pan is full in every mode by instruction. Drips land in water rather than on hot metal, so flare-ups never start. The other half of that is a surface which never sits over dry radiant heat.
Searing is not the job here. Breakfast is.
Wok mode suits the burner best of the four. A round bowl over a central flame is what this layout wants. Stove mode drops the plate and sets a pan on the chrome support. Pots are banned from the reversible plate, so that support is not optional.
Build, handling and durability
Materials are the gap. Coleman names the chrome on the pan support and the coating on the plate. Then it stops. Amazon’s listing fills the silence with attributes that cannot be right for a propane appliance.
What can be judged is how the thing holds together. Three screw-in legs make a tripod. A tripod does not rock on uneven ground. The latches that close the wok over the stack also keep it shut in transit.
Weight is the other half of handling. The whole appliance packs down to 11.25 lbs, with every loose part inside the wok. Coleman gives the size as 14 x 11 x 14 inches and labels no axis. Retailers print the same three numbers in a different order.
Setting it down needs a little thought. Coleman asks for 12 inches of clearance at the sides and 48 above. It is also outdoor-only, and explicitly not for use in a camper.
The coating is the wear part. Coleman says never to run the plate or the wok empty beyond a minute. That removes the usual fix for a dirty grill surface. Burning it off and brushing is out.
Running costs, upkeep and value
Fuel is a 16.4 oz disposable cylinder, sold separately. REI puts a full one at roughly three hours of flat-out burning. That covers a weekend of breakfasts. The manual also permits a 20 lb tank through the 5475 adaptor and hose.
Cleaning splits into two halves that feel very different. At home the wok, plate, pan support and water pan go in the dishwasher. The job ends there. At a campsite it does not.
The water pan unscrews counterclockwise and comes away holding greasy water. That has to go somewhere responsible, and it has to happen before anything packs.
The warranty is where the price starts to look generous. Coleman covers this product for three years on its own page and again in the manual. Amazon’s detail table says one year, which is worth knowing before either number gets relied on. Commercial use is excluded, and so is any damage from using the wok as a lid.
Around $122 buys a stove, a wok, a griddle and a grill. Real spares stand behind all of it. Judged as camp equipment rather than as a barbecue, the function per dollar is high.
Possible Coleman 4-in-1 Cooking System Complaints
- The modes cannot change during a meal. Coleman permits a swap only when the appliance is off and completely cool. Pancakes followed by burgers is therefore two cooks with a wait between. The fix is menu planning, or a second stove for the other surface.
- No wind protection, by Coleman’s own admission. Its spec sheet prints Stove Wind Block: No. A breeze across one open ring takes heat this appliance cannot spare. Park a vehicle or a tarp on the windward side and accept the extra minutes.
