A built-in grill is not bought the way a cart is. It turns up as a stainless box with no legs and no wheels. Somebody has to cut a hole for it first.
Fire Magic’s Choice Multi-User CM430i is that kind of grill. It is a 24-inch head in the Choice line. The grids lock, the knobs lock, and so does the warming rack. A timer shuts the gas off after an hour.
All of that exists because the grill is pointed at a courtyard full of strangers. Then the manual that ships with it prints a five-year warranty for exactly that setting. A home installation gets a lifetime. So which of those two buyers does Fire Magic actually have in mind?
46,000 BTUTwo main burners
432 sq inMain cooking surface
106 BTU/sq inHeat density, published figures
25 1/2 x 19 1/2 inCountertop cutout required
First Impressions of the Fire Magic CM430i
Installation comes before impressions on a grill like this. The head lowers into a countertop opening and hangs there. Raised hangers along both sides and the back carry it. Two adjustable bolts support the front edge.
What comes with it is worth knowing before the installer arrives. The stainless flex connector is already fitted to the valve manifold. The one-hour timer has its own stainless box. The shut-off valve does not come at all.

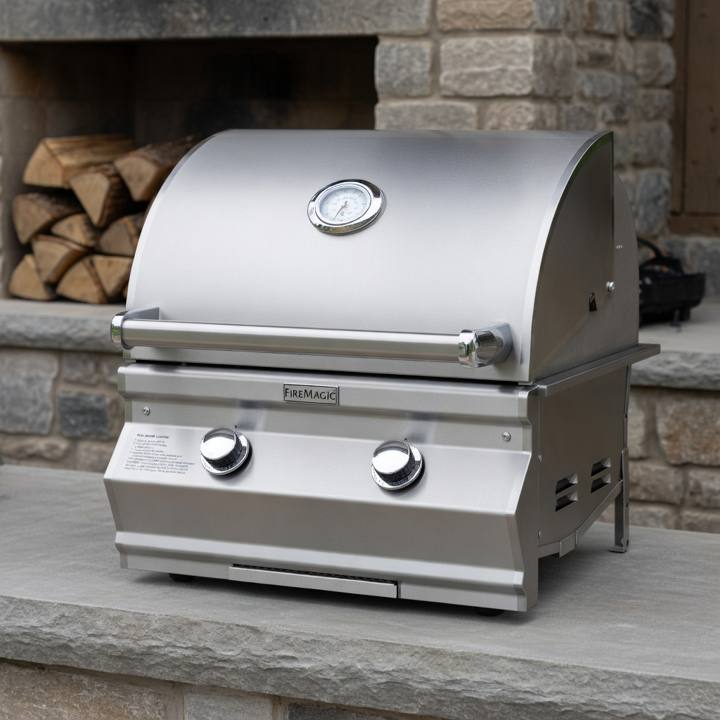

Once it is seated, the finish is the first thing you notice. 304 stainless runs across the hood and the control panel, satin rather than mirrored. The thermometer sits in the hood behind a polished bezel. It is angled forward, so you read it standing up.
Lifting that hood is easier than it looks. The hood is double walled, so there is real substance to it. A Teflon coated spring takes the effort out. It stops at 90 degrees and stays open.
Cook on it once and the hood stops being a lid. Two burners, 432 square inches, and heat held in by a double skin. It behaves like a wide, shallow oven more than an open grate. Steaks want the hood up; a rack of chicken wants it down.
Key Features of the Fire Magic CM430i
Strip the locks away and this is a Choice series grill. The locks are the reason the Multi-User version exists at all. None of them feel like an afterthought. Everything else is standard Choice hardware, and that is not a complaint.
- Diamond Sear cooking grids: These carry an anti-theft mechanism and are held in place by the face panel. Nobody walks off with a grid. The trade is that a deep clean means unlocking the panel first.
- Anti-theft locking knobs: The knobs use comfort touch grips and locking pins. In a shared courtyard, a missing knob takes a burner out of service. Fire Magic sells them as part 3026CM if one does go.
- Anti-theft warming rack: It measures 24 by 8 inches, or 192 square inches, and it adjusts. It also locks. That is rack space you can leave outdoors between weekends.
- One-hour gas timer: The dial turns clockwise to a shut-off time and winds itself back to off. Built-in units carry it in a stainless box beside the grill. No other feature here does as much work.
- Stainless steel throughout: 304 stainless forms the housing and the double walled hood. The Flavor Grids are 16-gauge 304 and the burners are 16-gauge tubular stainless.
- Push-button igniter: Each control knob carries its own spark, fired by pressing and turning. It needs no power supply and no battery. The manual also gives a match-lighting procedure.
- Analog thermometer: It is embedded in the hood with a polished stainless bezel. Analog is the right call on a shared grill. There is no display to fail between uses.
- Drip tray with disposable liners: Fat drops into a tray that takes liners in sets of four. Flavor Grids over the burners catch most of it first.
Fire Magic publishes 46,000 BTU and 432 square inches of main surface. Set against each other, those figures give about 106 BTU per square inch. For a grill this size that is a generous allowance of fire. Two 16-gauge tubular burners sit under Flavor Grids that spread the heat.
The catch is how few ways there are to spend it. Two burners across a 24-inch span give two zones and nothing in between. Hot on one side, gentler on the other, and no vocabulary beyond that. On a grill sold to a building with several families waiting, that matters.
What rescues it is the hood. A double walled 304 stainless oven holds heat around the food. The 192 square inch warming rack sits above the direct path. A wind guard keeps air out of the exhaust vent, which an exposed courtyard rewards.
Build, handling and durability
Nothing about the metal invites an argument. 304 stainless runs through the housing and the hood. Both the burners and the Flavor Grids are 16-gauge. Those are not value-tier numbers.
Handling on a built-in means the hood and the knobs, because nothing else moves. The spring assist carries a double walled hood to 90 degrees without a shove. The knobs turn on comfort grips and stay put on locking pins. Neither is a small thing on a grill several households share.
Durability is where the story turns. Fire Magic’s residential schedule covers housing, burners and stainless grids for the owner’s lifetime. The manual for this model prints a second schedule instead, for commercial and multi-user use. There, those same parts get five years and everything else gets one.
That second schedule names its settings: apartment complexes, schools, hotels, fire stations. They are the settings Fire Magic’s own page advertises this grill for. Neither document mentions the other. The CM430i is engineered for the courtyard and warranted longest for the backyard.
Running costs, upkeep and value
Around $4,190 buys the grill head and its timer box. The listing on record sells the propane version, model CM430I-RT1P. A shut-off valve is required within 6 feet, and is not included. If the enclosure is combustible, an insulating liner is required and sold separately.
Ventilation is the cost nobody quotes at the counter. A natural gas enclosure needs 20 square inches of free vent area. A propane cylinder inside that enclosure needs 30, over four openings. A remote propane system needs 180.
Buying one is also unlike buying a cart. Fire Magic sells through dealers, and the listing on record comes from a third-party seller. Stock showed thin and delivery ran about a week out. For a fitted appliance that is normal, and worth knowing.
Upkeep, by contrast, is deliberately dull. The drip tray takes disposable liners and the Flavor Grids catch most of the fat. Nothing on it ages the way a control board does. On a grill that may sit unused for weeks, dull is the right ambition.
Possible Fire Magic CM430i Complaints
- The warranty is shortest in the setting the grill was designed for: Lifetime coverage on housing, burners and grids applies to residential use. Install it in an apartment or resort common area and the commercial schedule takes over. That one runs five years. Ask the dealer which schedule applies before the purchase order goes in.
- The propane configuration fights the enclosure it goes into: A cylinder inside the island demands 30 square inches of venting, against 20 for natural gas. A remote propane system needs 180. That is masonry work, not a shopping decision. If the island can be plumbed, order the natural gas configuration instead.
