Fire Magic builds the Choice Multi-User built-in in three widths. All three use the same main burner part. The 24-inch CM430i runs two of them. The 36-inch CM650i runs three.
The CM540 runs three as well, over a 30-inch grate. Then Fire Magic did something it did nowhere else here. It drilled this model’s gas jets smaller than either neighbour’s.
Same burner, three of them, less gas through each. Product lines do not usually scale that way. Fire Magic’s own page says nothing about it. Whether that makes it the better grill is the question.
First Impressions of the Fire Magic CM540

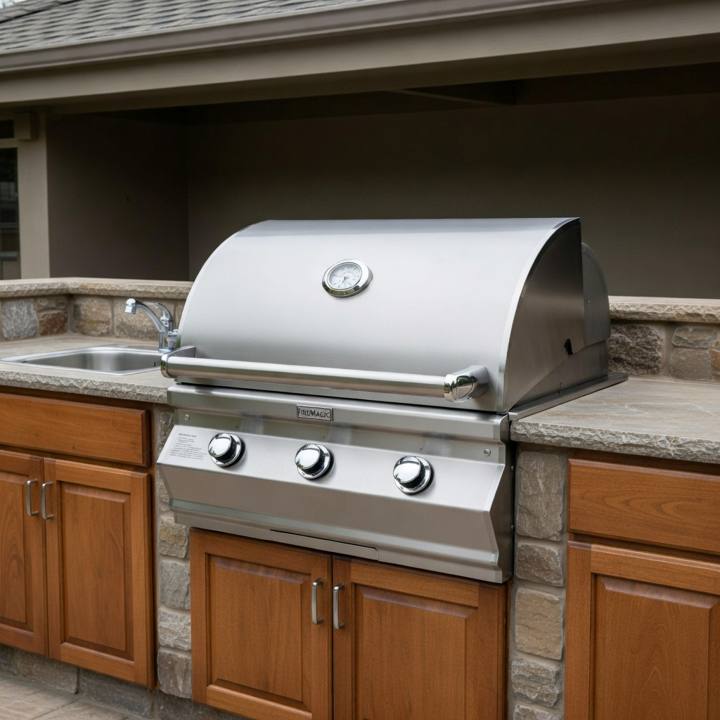

There is no box to wrestle and no cart to bolt together. What arrives is a grill head with hangers on three sides. It drops into a hole somebody else already built. Two people minimum, says the manual, and that is not a suggestion.
A dealer-listed 200 lbs explains why. The hangers rest on the countertop, so the head sits flush with the stone. The finish is satin stainless and the hood is double-walled 304.
A Teflon-coated spring assist carries the hood through its full 90 degrees. Two fingers lift it, not a shoulder. An analog dial sits in a polished bezel, angled forward for reading while you stand.
Across the front, 32 1/2 inches of control panel carry three chrome knobs. Turn one and it sparks itself. That spark needs no wiring behind the panel. Nothing here goes flat over a wet winter.
The manual wants a closed hood and 15 minutes before the first cook. Then the food goes on. Besides the three knobs, the only thing on the panel is a lighting legend.
Key Features of the Fire Magic CM540
Most of what separates this grill from its neighbours is invisible on the product page. Fire Magic publishes the output and the area. It never says how many burners produce them. The installation manual does, and that is where the model turns interesting.
- Three main burners, jetted small. Table 2 of the manual gives three burners, natural gas and propane alike. Drill sizes are #43 and #55, where both neighbours take #41 and #54. Fire Magic leaned this one out deliberately.
- 540 square inches of grate, 240 more on the rack. The main surface runs 30 inches across and 18 front to back. Fire Magic prints the rack separately. It never adds the two figures together, which is the honest way round.
- Stainless steel where it does the work. The burners are 16-gauge tubular stainless. The Flavor Grids above them are 16-gauge 304, spreading heat and cutting flare-ups. The oven around both is double-walled 304.
- Diamond Sear grids that stay put. The grids carry an anti-theft mechanism. A channel bolted to the control panel holds them down. The warming rack is bracketed the same way.
- Knobs that need a hex key. Each knob hides a locking screw behind its rubber grip. A 2mm key reaches it. Nobody pockets a knob on the way out of the pool gate.
- A mechanical hour-glass on the gas line. Set the dial clockwise to any span up to one hour. It creeps back anticlockwise until the supply closes. Built-in models carry that timer in a separate stainless box, with its own cutout.
- Nothing that plugs in. Electricity never enters this grill, at any point in the install. The spark comes from the knob. The thermometer is a needle behind glass.
The arithmetic is the first surprise. Set 60,000 BTU against 540 square inches and you get 111 per square inch. Both neighbours in the line land at 106. It is the only Choice Multi-User built-in that runs hotter than its own family.
The zoning matters more than the density. Three burners across 30 inches give each knob about 10 inches of grate. On the CM430i and the CM650i that figure is 12. Shutting one burner costs a third of the surface, not half.
That turns indirect cooking from a sacrifice into a setting. Ribs at one end, a sear at the other, on one grate. That is rare to be able to write about a 30-inch grill.
What none of it tells you is what the food gets. Fire Magic states output and area, then stops. No first-party figure exists for what this grate reaches. The argument rests on the geometry, and the geometry is good.
Build, handling and durability
The materials story is the one the whole Choice range tells, and it is strong. 304 stainless around a double wall, 16-gauge burners, a hood that opens to a stop. The spark lives in the knob and the thermometer is a needle. The timer is mechanical enough to sit in its own box.
Then there is the paperwork. The manual shipped with the CM models prints one warranty schedule. It is the commercial one. Five years on housing, burners, rod grids, valves, liners and manifolds, one year on the rest.
That schedule covers the apartment blocks and hotels this grill is sold to serve. A dealer listing for the same part number prints the residential lifetime terms instead. The two documents never acknowledge each other.
One smaller thing deserves a builder’s attention. The jets in this model fit no other grill in the range. Ten years out, that is a thinner parts story than its siblings enjoy.
Running costs, upkeep and value
Prices here come from one authorised dealer, checked on 17 September 2026. The CM540 stood at $4,792.50 that day. The CM430i was $4,190.40 and the CM650i $5,157.00. Per square inch of grate, that is $8.88, $9.70 and $7.96.
The 36-inch model buys the cheaper surface, as bigger grills usually do. The ladder has one uneven rung, though. Stepping up from the CM430i costs $602.10 and adds a burner. Stepping up again costs $364.50 and adds width only.
If a third zone is the point, the first step is the one that delivers it. A quieter saving hides in the install. Fire Magic specifies the same minimum vent hood model as for the 24-inch grill. The 36-inch needs the next size up.
Under a roof that gap is real money, and no chart shows it. Day to day the upkeep is undemanding. Almost nothing reaches the burner tubes, because the Flavor Grids take it first. The tray beneath takes a disposable liner.
A burn-off on high for 10 to 15 minutes handles most of the rest. A deep clean is required twice a year, and a timer test every month. Salt air and pool chemistry push the exterior onto a much shorter cycle. The cover is not in the price.
Possible Fire Magic CM540 Complaints
- Cleaning under the grids is a small dismantling job. The channel that stops grids walking off bolts to the control panel. Three knobs, two screws and the whole panel come off before the grids do. In a shared courtyard that is the right trade, and at home an irritation.
- The coverage runs backwards from the intent. Every locking feature here exists for common-area use. Put it in one, and the schedule in the carton runs five years. The building gets the hardware it needs and the shortest warranty Fire Magic writes.
